Inner and Outer Shield Cable Materials

Classification：Inner & Outer Shield Cable Compounds Machine

Technical Characteristic 1.the basic formula ingredients: resin, carbon black, dispersant, cross-linking agent, coupling agent and other additives. 2. basic processing route The raw material first accurate measurement in banbury mixer mixing, feeding single screw, single screw granulation.Crosslinking products can join in the high speed mixer crosslinking agent. 3.Application: inside and outside the shielded cable material, etc.

She mainly supply complete equipments for plastic & rubber compounding and pelletizingindustry,including dispersion kneader,parallel twin screw extruder, single screw extruder, variouspelletizers and other auxiliaries. They are widely applied in plastic modification, masterbatch, cablecompounds. rubber compounds, recycling plastic etc.

Key words：Inner and Outer Shield Cable Materials

86-513-88788818

Message

Return to List

Product Details

Technical Characteristic
1.the basic formula ingredients: resin, carbon black, dispersant, cross-linking agent, coupling agent and other additives.
2. basic processing route
The raw material first accurate measurement in banbury mixer mixing, feeding single screw, single screw granulation.Crosslinking products can join in the high speed mixer crosslinking agent.

3.Application: inside and outside the shielded cable material, etc.
Machine Models and Data

ITEM	UNIT	MODEL
ITEM	UNIT	KC-52/100	KC-65/150	KC-75/180	KC1-95/200
Mixer machine		39	55L	75/100L	110L
Motor of mixer machine	KW	55	75	110/160	185
L/D		32/9	32/9	32/9	32/9
Screw diameter	MM	50.5/100	62.4/150	71/180	91/200
Single screw motor power	W	37/30	55/45	90/55	160/90

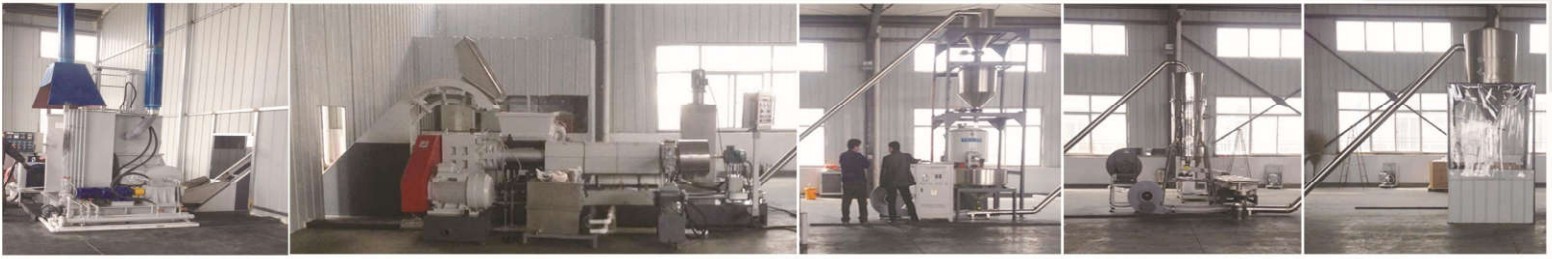

Production process: Kneader--Conveyor--Conical Force Feeder--Single Screw extruder--Die-face water-loop cutting--wder water lutting--Weighing unit--High speed mixer--Drying auxiliaries--Homogenization silo

Mixing extrusion granulation equipment has significant advantages in chemical, plastic, rubber and other industries. It is characterized by high efficiency mixing, precise control, convenient operation and stable output. The equipment can ensure that the materials are fully mixed under high-speed stirring and improve product quality. At the same time, the intelligent control system can realize the precise control of temperature, pressure, flow and other parameters. Simple operation, reduce manual error. In addition, the equipment is suitable for a variety of materials, has strong adaptability, and can meet the needs of different industries. Widely used in the manufacture of PVC, PE and other plastic particles, as well as rubber, elastomer and other materials processing. Its efficient and stable performance has won wide recognition and praise in the industry.
